O módulo PCA9685 é capaz de acionar via I2C, 16 canais PWN, onde é possível colocar servos e fitas de LEDs num único projeto. Como exemplo, iremos acionar dois servos, um no endereço 0 e o outro no endereço 15. Estes endereços são os pinos do módulo, pois na Pi Pico utilizaremos os GPIOs 0 e 1 (SCL e SDA).

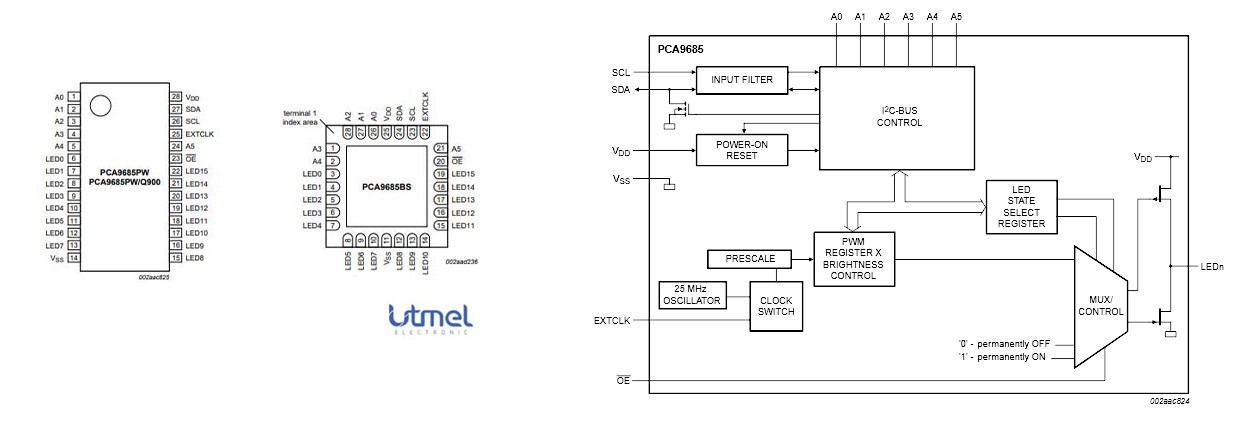

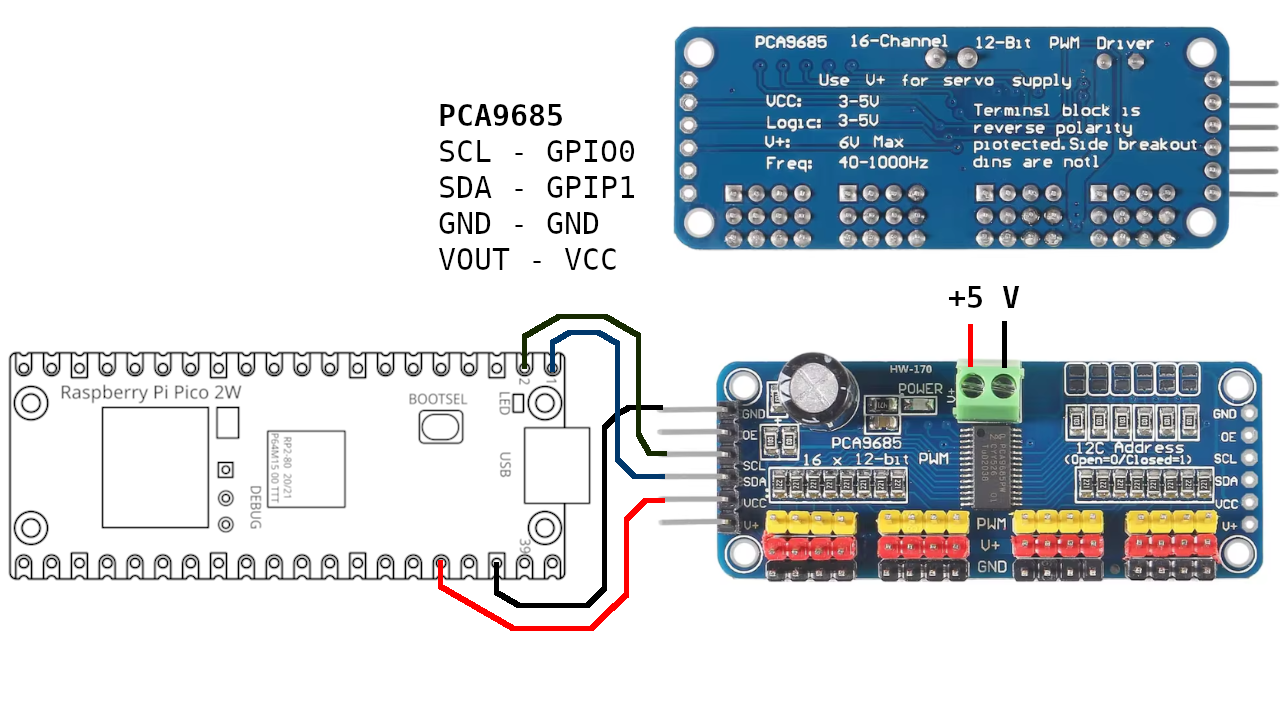

Na figura 1 temos o diagrama do módulo, e na figura 2 o esquema elétrico da montagem. O módulo possui um clock interno, e é com ele que o sincronismo é feito, utilizando as funções da biblioteca “pca9665.py”.
Abaixo temos o código-fonte da biblioteca:
# SPDX-FileCopyrightText: 2016 Radomir Dopieralski for Adafruit Industries
# SPDX-FileCopyrightText: 2017 Scott Shawcroft for Adafruit Industries
# SPDX-FileCopyrightText: Copyright (c) 2023 Jose D. Montoya
#
# SPDX-License-Identifier: MIT
"""
`pca9685`
================================================================================
MicroPython Driver for the PCA9685 PWM control IC. Its commonly used to control
servos, leds and motors.
* Author(s): Radomir Dopieralski, Scott Shawcroft, Jose D. Montoya
"""
import time
from micropython_pca9685.i2c_helpers import RegisterStruct, StructArray
class PWMChannel:
"""A single PCA9685 channel that matches the :py:class:`~pwmio.PWMOut` API.
:param PCA9685 pca: The PCA9685 object
:param int index: The index of the channel
"""
def __init__(self, pca, index: int):
self._pca = pca
self._index = index
@property
def frequency(self) -> float:
"""The overall PWM frequency in Hertz (read-only).
A PWMChannel's frequency cannot be set individually.
All channels share a common frequency, set by PCA9685.frequency."""
return self._pca.frequency
@frequency.setter
def frequency(self, _):
raise NotImplementedError("frequency cannot be set on individual channels")
@property
def duty_cycle(self) -> int:
"""16 bit value that dictates how much of one cycle is high (1) versus low (0). 0xffff will
always be high, 0 will always be low and 0x7fff will be half high and then half low.
"""
pwm = self._pca.pwm_regs[self._index]
if pwm[0] == 0x1000:
return 0xFFFF
if pwm[1] == 0x1000:
return 0x0000
return pwm[1] << 4
@duty_cycle.setter
def duty_cycle(self, value: int) -> None:
if not 0 <= value <= 0xFFFF:
raise ValueError(f"Out of range: value {value} not 0 <= value <= 65,535")
if value == 0xFFFF:
# Special case for "fully on":
self._pca.pwm_regs[self._index] = (0x1000, 0)
elif value < 0x0010:
# Special case for "fully off":
self._pca.pwm_regs[self._index] = (0, 0x1000)
else:
# Shift our value by four because the PCA9685 is only 12 bits but our value is 16
value = value >> 4
self._pca.pwm_regs[self._index] = (0, value)
class PCAChannels:
"""Lazily creates and caches channel objects as needed. Treat it like a sequence.
:param PCA9685 pca: The PCA9685 object
"""
def __init__(self, pca):
self._pca = pca
self._channels = [None] * len(self)
def __len__(self) -> int:
return 16
def __getitem__(self, index: int) -> PWMChannel:
if not self._channels[index]:
self._channels[index] = PWMChannel(self._pca, index)
return self._channels[index]
class PCA9685:
"""
The internal reference clock is 25mhz but may vary slightly with environmental conditions and
manufacturing variances. Providing a more precise ``reference_clock_speed`` can improve the
accuracy of the frequency and duty_cycle computations. See the ``calibration.py`` example for
how to derive this value by measuring the resulting pulse widths.
"""
# Registers:
mode1_reg = RegisterStruct(0x00, "<B")
mode2_reg = RegisterStruct(0x01, "<B")
prescale_reg = RegisterStruct(0xFE, "<B")
pwm_regs = StructArray(0x06, "<HH", 16)
def __init__(
self,
i2c,
*,
address: int = 0x40,
reference_clock_speed: int = 25000000,
) -> None:
self._i2c = i2c
self._address = address
self.channels = PCAChannels(self)
"""Sequence of 16 `PWMChannel` objects. One for each channel."""
self.reference_clock_speed = reference_clock_speed
"""The reference clock speed in Hz."""
self.reset()
def reset(self) -> None:
"""Reset the chip."""
self.mode1_reg = 0x00 # Mode1
@property
def frequency(self) -> float:
"""The overall PWM frequency in Hertz."""
prescale_result = self.prescale_reg
if prescale_result < 3:
raise ValueError(
"The device pre_scale register (0xFE) was not read or returned a value < 3"
)
return self.reference_clock_speed / 4096 / prescale_result
@frequency.setter
def frequency(self, freq: float) -> None:
prescale = int(self.reference_clock_speed / 4096.0 / freq + 0.5)
if prescale < 3:
raise ValueError("PCA9685 cannot output at the given frequency")
old_mode = self.mode1_reg # Mode 1
self.mode1_reg = (old_mode & 0x7F) | 0x10 # Mode 1, sleep
self.prescale_reg = prescale # Prescale
self.mode1_reg = old_mode # Mode 1
time.sleep(0.005)
# Mode 1, autoincrement on, fix to stop pca9685 from accepting commands at all addresses
self.mode1_reg = old_mode | 0xA0
def __enter__(self):
return self
def __exit__(
self,
exception_type,
exception_value,
traceback,
):
self.deinit()
def deinit(self) -> None:
"""Stop using the pca9685."""
self.reset()
Para testar o módulo, conecte os pinos do GPIos 0 e 1 no SCL e SDA do módulo, assim como o GND e o Vout como demostrado na figura 2. Conecte os servos nos pinos 0 e 15 do módulo e salve tanto o programa acima como o programa teste abaixo na Pi Pico.
from machine import I2C, Pin
from micropython_pca9685.pca9685 import PCA9685
import time
i2c = I2C(0, scl=Pin(1), sda=Pin(0))
pca = PCA9685(i2c)
pca.frequency = 50
def set_servo_angle(channel, angle):
min_us = 500
max_us = 2500
us = min_us + (angle / 180) * (max_us - min_us)
duty = int((us / 20000) * 65535)
pca.channels[channel].duty_cycle = duty
servo = 0
while True:
angle = 0.0
while angle <= 90.0:
set_servo_angle(servo, angle)
time.sleep(1) # 1s
set_servo_angle(servo+15, angle)
angle += 15
time.sleep(1) # 1s
Ao executar o programa os servos deverão movimentar de 15 em 15 graus, indo do 0 aos 90 graus e retornar a zero.
Referencias
Github da biblioteca: https://github.com/halherta/pca9685
